Used for Water, oil, gas
BS 21/150228-1-2000
BS 21/ ISO 228-1-2000 Threads standard
Max 16 Bar-Max. working pressure. 16 Bar
Max 120°C – Max. working temperature: 120 °C
Technical Specifications
Used for Water, oil, gas
BS 21/150228-1-2000
BS 21/ ISO 228-1-2000 Threads standard
Max 16 Bar-Max. working pressure. 16 Bar
Max 120°C – Max. working temperature: 120 °C
Material
| Body | Brass |
| Bonnet | Brass |
| Disc | Brass |
| Stem | Brass |
| Gland nut | Brass |
| Lock nut | Brass |
| Gland ring | Brass |
| Name plate | Aluminium |
| Gland packing | Teflon- PTFE |
| O-ring | Teflon – PTFE |
| Wheel nut | 304 Stainless Steel |
| Hand Wheel | Cast iron / Aluminium |

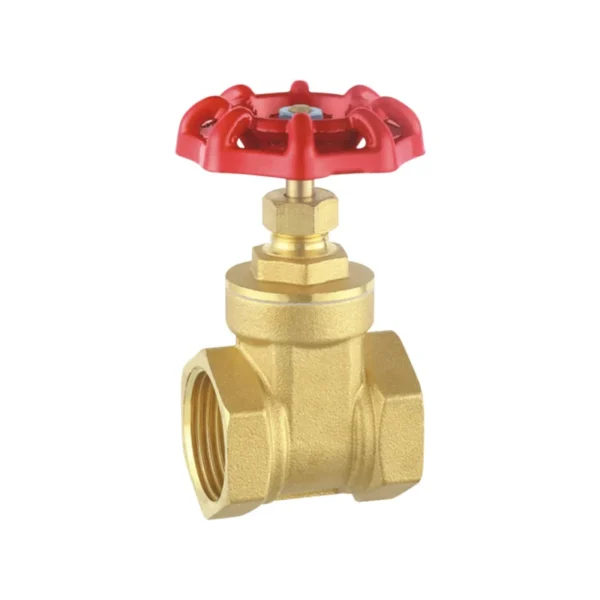

(i) Brass gate valves are highly durable and work well in applications where corrosion is a serious concern.
(ii) This material tolerates high temperatures well, so it is commonly used in manufacturing applications.
(iii) SWBM supplies Brass Gate Valve Threaded available with material Brass, Threaded 600WOG with connection BSPT, NPTand sizes ranging from “1/2” – “4”.
(iv) At Sunelwala Dubai, we are major stockists and retailers for a wide variety of Brass gate Valve Threaded in the MENA region.
(V) MIHA VALVES (VIETNAM)
| Size (inch) | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ |
| DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| L (mm) | 42 | 44 | 52 | 58 | 62 | 70 | 80 | 89 | 108 |
| H (mm) | 88 | 100 | 116 | 138 | 155 | 186 | 226 | 254 | 313 |
| ØD (mm) | 54 | 54 | 60 | 72 | 72 | 96 | 108 | 108 | 127 |
