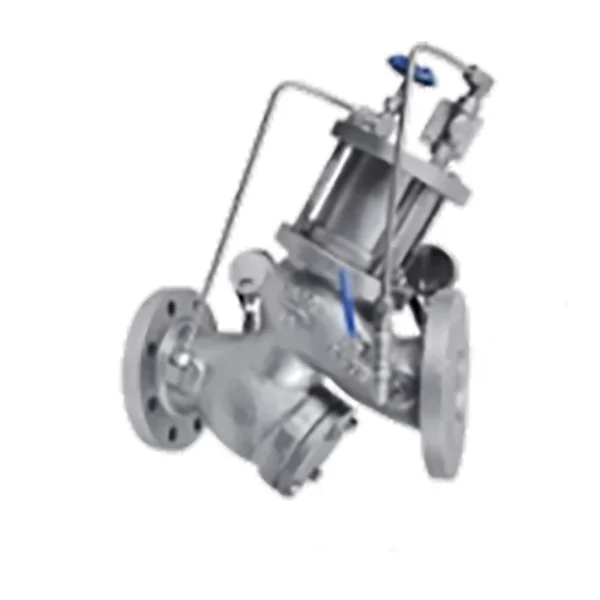

Product Overview

This valve serves the functions of filtration and uses the principle of hydraulic transmission to control its opening, closing and degree of opening, so as to meet the performance requirements of the valve. It utilizes the fluid in the pipeline as the hydraulic transmission medium and is generally used in domestic water supply and industrial water supply systems.

Main Features

• Integrates filtration, piston structure and adjustable pressure reducing functions.
• Controls pressure and operation via hydraulic transmission principle.
• Uses pipeline fluid as the hydraulic transmission medium.
• Suitable for domestic water supply and industrial water supply systems.

Working Principle

• First, the fluid in the pipeline enters the valve and is filtered to remove impurities.
• Then, relying on the hydraulic transmission principle, the piston structure adjusts its position.
• This adjustment controls the fluid pressure, reducing the inlet pressure to the required outlet pressure.
• The valve maintains stable outlet pressure by continuously regulating the piston according to pressure changes.

Structural Features

• Adopts a piston-type structural design for pressure regulation.
• Equipped with a built-in filtration component to remove fluid impurities.
• Has an adjustable mechanism to set and fine-tune outlet pressure.
• Features a hydraulic transmission-related structure to drive piston movement.
• Designed to be compatible with pipeline fluid as the transmission medium.

Maintenance

• Check hydraulic oil level annually
• Test closing time every 6 months
• Inspect disc and seat for wear during system shutdowns
• Lubricate adjustment mechanism yearly
• Verify proper operation after system pressure changes
