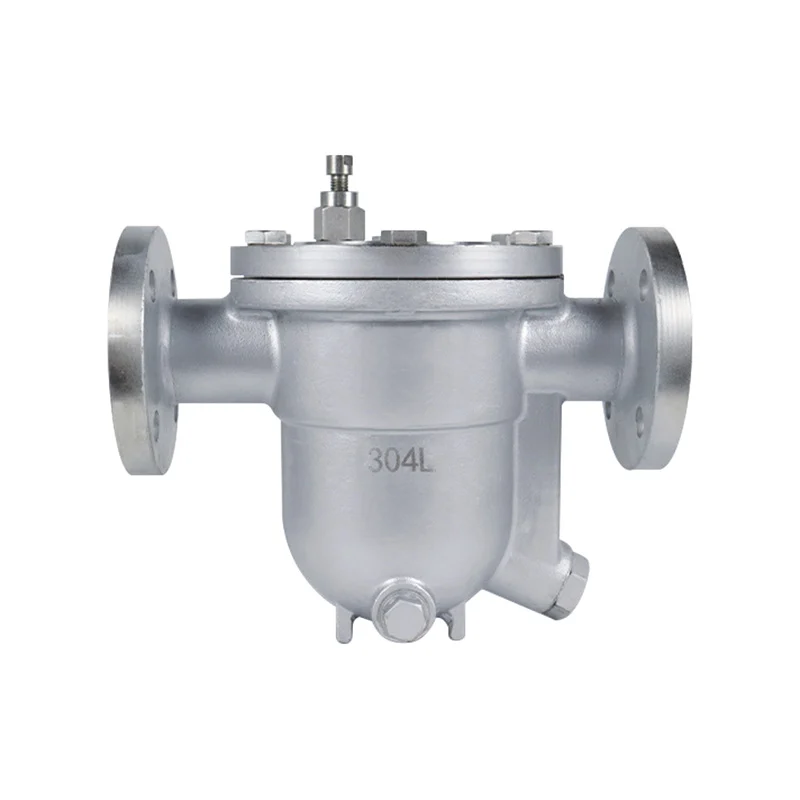

Ball float steam traps are extremely versatile and work efficiently on both light and heavy condensate loads.
Application
Ball float steam traps are extremely versatile and work efficiently on both light and heavy condensate loads. Although compact in size, their discharge capacity is high and continuous, ensuring maximum heat transfer. These traps are the best choice for draining plant with automatic temperature control.
Size and pipe connections
DN15-DN25 Flanged EN 1092 PN16/PN25，ANSI 150
| Part | Material |
| Body/Cover | A216 WCB |
| Cover bolts | A193 B7 |
| Cover gasket | graphite+SS304 or ss316 |
| Valve seat | A276 430 |
| Ball float and lever | A240 304 |
| Air vent assembly | A240 304 |
| Body design conditions | PN25 |
| PMA Maximum allowable pressure | 25Bar g |
| TMA Maximum allowable temperature | 300°C |
| Maximum differential pressure（ΔPMX) | 14Bar |
| Horizontal connections with flow from right to left. | |
| Horizontal connections with flow from left to right. | |
| Vertical connections with flow downwards. | |
| Design standard: ISO6552; EN26704 | |
| Face to face dimension: EN26554 | |
| Test & inspection: EN26948 | |
