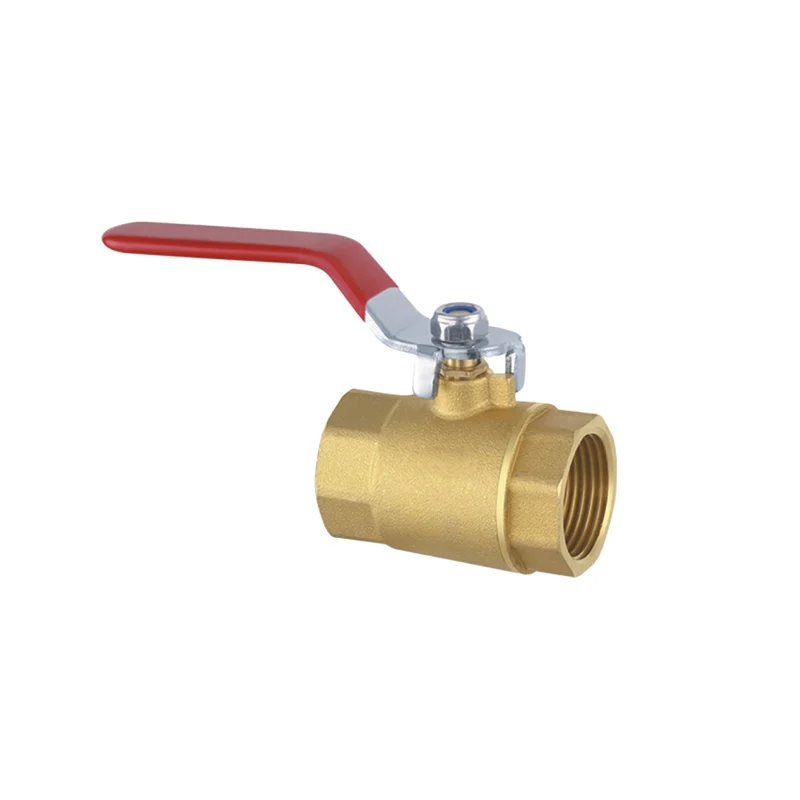

Q11F-16TBrass Wire Buckle Ball ValveDriven by the valve stem, and around the axis of the valve stem for rotary motion of the valve.
Q11F-16TBrass Wire Buckle Ball ValveDriven by the valve stem, and around the axis of the valve stem for rotary motion of the valve. Mainly used to cut off or connect the medium in the pipeline, can also be used for fluid regulation and control. This type of valve in the pipeline should generally be installed horizontally.
Product Features
This valve has a compact structure, reliable sealing, simple structure, easy maintenance, the sealing surface and the ball surface is often in the closed state, not easy to be eroded by the medium, easy to operate and maintain.
Product Parameters
| Product Model | Q11F-16T |
| Valve body material | brass |
| Nominal pressure | ≤1.6Mpa |
| Applicable medium | Water, gas, oil, etc. |
| Applicable temperature | ≤120°C |

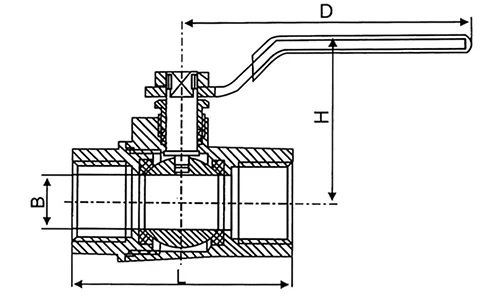

| a thoroughfare | L | B | H | D |
| DN15 | 55 | 12 | 46 | 96 |
| DN20 | 60 | 15 | 51 | 106.5 |
| DN25 | 65 | 20 | 52.5 | 113 |
| DN32 | 68 | 24 | 58 | 135 |
| DN40 | 75 | 32 | 72 | 135 |
| DN50 | 88 | 40 | 81 | 145 |
| DN65 | 95 | 47 | 89.5 | 165 |
| DN80 | 112 | 56 | 97 | 182 |
