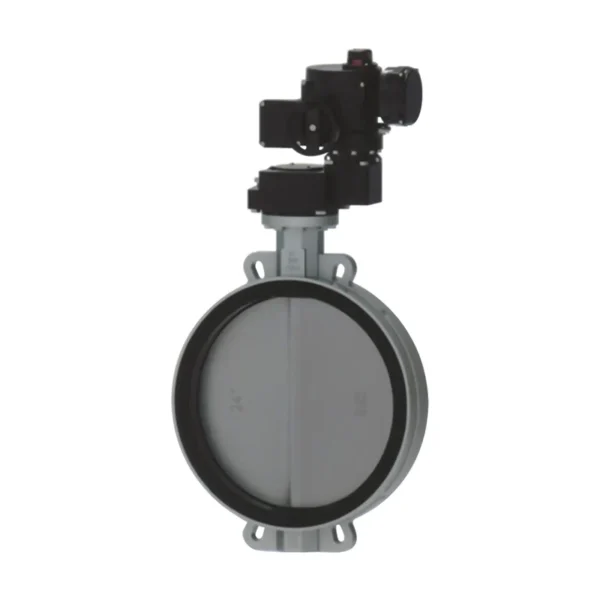

Compact and lightweight wafer design for easy installation between flanges
Soft seat ensures bubble-tight shut-off with low operating torque
Electric actuator provides precise control and automation capability
Bi-directional flow capability with zero leakage
Low pressure drop and high flow capacity
Key Features
Typical Applications
Ordering Information
When ordering, please specify:
Product Specifications
| Parameter | Specification |
| Valve Type | Wafer Style Butterfly Valve |
| Seat Material | EPDM, NBR, Viton (optional) |
| Disc Material | Ductile Iron with Epoxy Coating, Stainless Steel (optional) |
| Body Material | Ductile Iron, Cast Iron, Stainless Steel |
| Size Range | DN50 to DN1200 (2″ to 48″) |
| Pressure Rating | PN10/16, Class 150 |
| Temperature Range | -20°C to +120°C (depending on seat material) |
| Actuator Type | Electric (On/Off or Modulating) |
| Voltage | 24V DC, 110V AC, 220V AC, 380V AC |
| Control Signal | 4-20mA, 0-10V, or switch signal |
| Protection Class | IP65, IP67 (optional) |
| Connection Standard | EN, ANSI, JIS, etc. |
