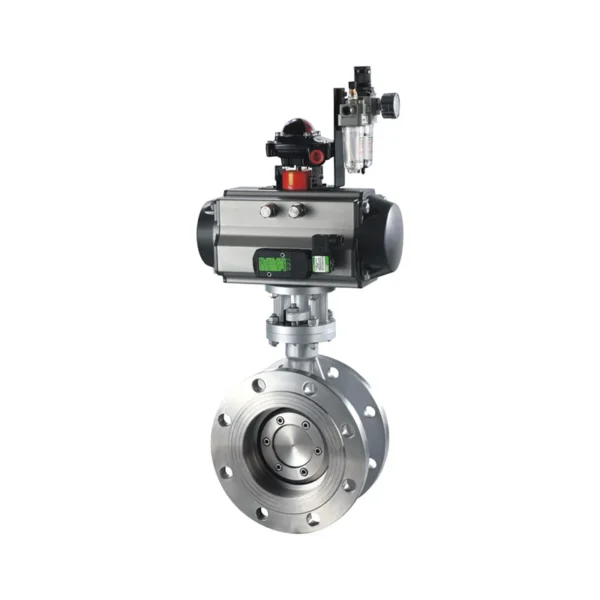

Our pneumatic flange type butterfly valve features a robust design with flanged connections for easy installation and maintenance.
Product Description
Our pneumatic flange type butterfly valve features a robust design with flanged connections for easy installation and maintenance. The pneumatic actuator provides quick and reliable operation, making it ideal for automated process control systems.
Technical Specifications
| Parameter | Specification |
| Valve Size | 2″ to 48″ (DN50 to DN1200) |
| Pressure Rating | PN10 to PN40 (150psi to 300psi) |
| Body Material | Ductile Iron, Carbon Steel, Stainless Steel (CF8/CF8M) |
| Disc Material | Stainless Steel 316, Aluminum Bronze, Nickel Plated |
| Seat Material | EPDM, NBR, Viton, PTFE |
| Actuator Type | Double Acting / Spring Return Pneumatic |
| Operating Pressure | 4-7 bar (60-100 psi) |
| Temperature Range | -20°C to +180°C (-4°F to 356°F) |
| Flow Characteristic | Equal Percentage |
| Standards | ISO 5752, EN 593, API 609 |
Key Features & Benefits
Requires less space compared to gate valves and weighs significantly less, reducing structural support needs.
90-degree rotation provides fast opening/closing with minimal torque requirements.
Precision-machined disc and resilient seat ensure zero leakage when closed.
Streamlined disc design minimizes turbulence and pressure loss when fully open.
Available with spring-return actuators for fail-open or fail-close operation.
Visual position indicator shows valve status at a glance.
