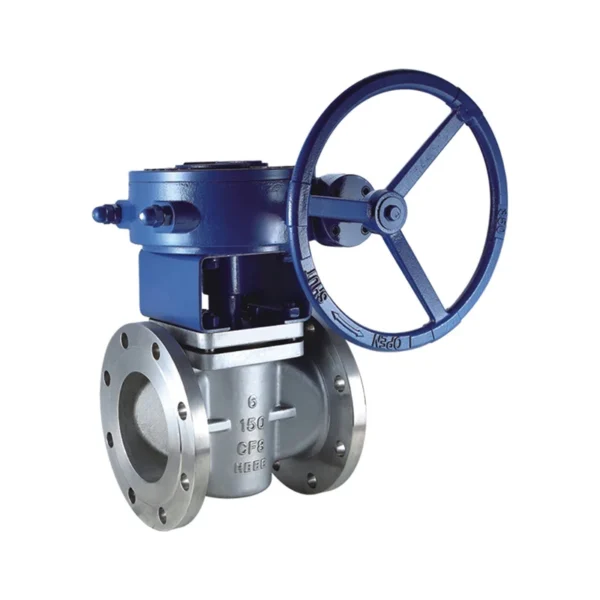

Nominal diameter: 10″
Pressure rating: ANSI Class 600#,
Connection: RF flanged, ASME B16.5
Body material: ASTM A216 WCB, Plug: CA15, Shaft: 17-4PH
Operation: Wormgear
Nominal diameter: 10″
Pressure rating: ANSI Class 600#,
Connection: RF flanged, ASME B16.5
Body material: ASTM A216 WCB, Plug: CA15, Shaft: 17-4PH
Operation: Wormgear
Features: Bolted cover, structure of flip-chip balanceable pressure and light on/off operation.
Bolted cover, structure of flip-chip balanceable pressure and light on/off operation. An oil grove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
Standards compliance
Main pants materials
| NO. | Part Name | Material | ||||
| A216 WCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | ||
| 1~2 | Body/Nut | A193 B7/A194 2H | A193 B8/A194 8 | A193 B8M | A194 8M | |
| 3 | Cover | A216 WCB | A351 CF8 | A351 CF8M | ||
| 4 | Gasket | Flexible graphite+stainless steel/PTFE | ||||
| 5 | Plug | A182 F304 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 6 | Body | A216 WCB | A351 CF8 | A341 CF8M | A182 F304L | A351 CF3M |
| 7 | stem | A182 F410 | A182 F304 | A182 F316 | A182 F304L | A351 CF3M |
| 8 | “O” ring | NBR/FEP/SBR | ||||
| 9 | Packing | Flexible graphite/PTFE | ||||
| 10 | Gland | A216 WCB | A351 CF8 | A351 CF8M | ||
| 11~12 | Oil nozzle/check valve | Material see body | ||||
| 13 | Wrench | ASTM A47-32510 A216 WCB | ||||
