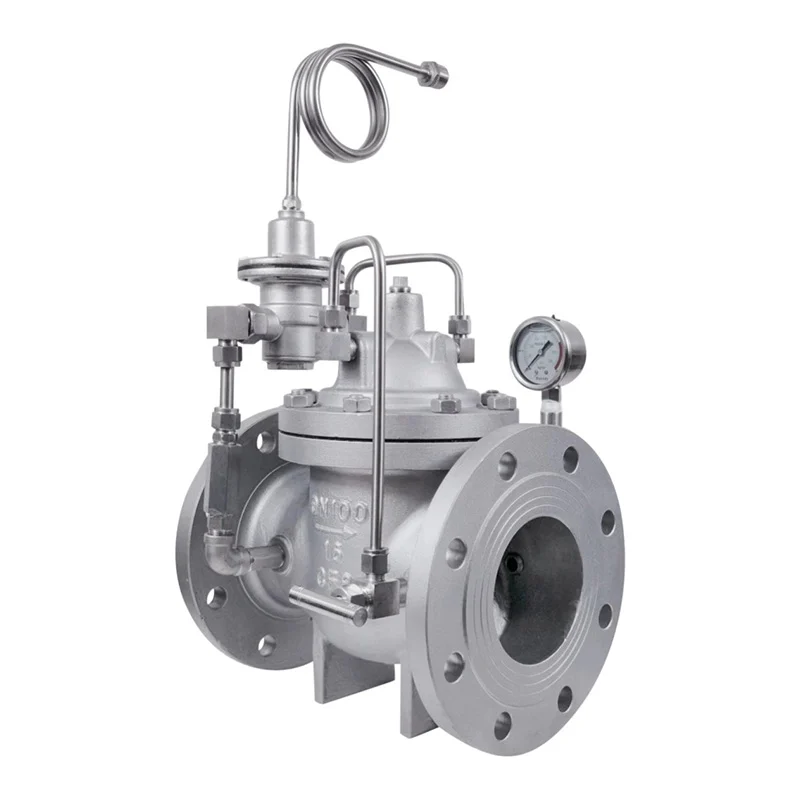

Product Overview

This valve is installed at the outlet of the water pump. When a single pump is started, it mainly functions to limit the flow when multiple pumps are in operation. It prevents the motor from overloading when the water pump operates at low lift, high flow, and low efficiency, while also achieving a certain energy-saving effect.

Main Features

• Installed at the water pump outlet, mainly for flow limiting and check functions.
• Prevents motor overload caused by the pump operating at low lift, high flow and low efficiency.
• Provides a certain energy-saving effect during operation.

Working Principle

1. When the pump starts, the valve opens gradually with the water flow, limiting the flow to avoid excessive initial flow.

2. During multi-pump operation, it restricts the flow of working pumps to prevent the pump from operating at low lift, high flow and low efficiency, thus avoiding motor overload.

3. When the pump stops, the valve closes quickly under the action of reverse water pressure and its own structure to prevent water backflow.

Structural Features

• Adopts a combined structure of a flow-limiting component and a check component, integrating two functions in one valve body.
• The flow-limiting part is equipped with an adjustable mechanism, which can adapt to different flow control requirements of water pump systems.
• The check component uses a fast-closing structure (such as a spring-assisted disc), ensuring rapid shutdown to prevent backflow when the pump stops.
• The valve body is designed with a streamlined internal flow channel, reducing water flow resistance and lowering energy consumption during operation.
• Key components (like the valve disc and seal ring) are made of wear-resistant and corrosion-resistant materials, extending the service life of the valve.

Maintenance

• Check hydraulic oil level annually
• Test closing time every 6 months
• Inspect disc and seat for wear during system shutdowns
• Lubricate adjustment mechanism yearly
• Verify proper operation after system pressure changes
