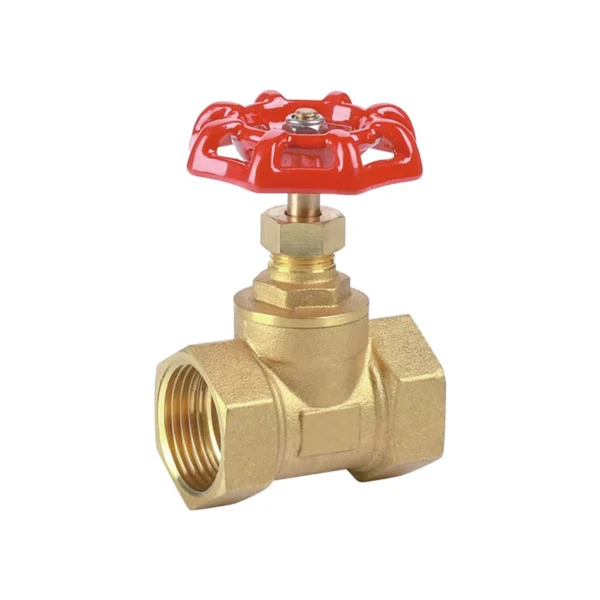

J11W-16T BrassScrew shut-off valvesAdopting high-quality brass material, the valve stem is designed and manufactured as a concealed stem, and the connection method is internal thread connection, which has the advantages of good sealing performance and reliable quality.
Product Details
J11W-16T BrassScrew shut-off valvesAdopting high-quality brass material, the valve stem is designed and manufactured as a concealed stem, and the connection method is internal thread connection, which has the advantages of good sealing performance and reliable quality.shut-off valveAlso called cut-off door, in the valve is a very widely used one of the products. The product mainly consists of valve body, valve cover, valve flap, valve stem, in the pipeline plays the role of cutting off and cut off the flow. The product has good corrosion resistance and oxidation resistance, good material flexibility and excellent sealing performance. In addition to the handwheel and nut, other parts are produced by brass material finishing, with oxidation resistance, rust, generally applicable to plumbing. The medium can only overflow from one side to the other, can not do the role of two-way flow. Widely used in all kinds of building plumbing pipeline use.
Product Parameters
| Product Model | J11W-16T |
| Valve body material | brass |
| Nominal pressure | ≤1.6Mpa |
| Applicable medium | Water, gas, oil, etc. |
| Applicable temperature | ≤120°C |

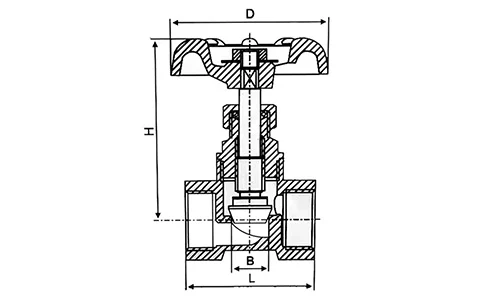

| a thoroughfare | SIZE | L | B | H | D |
| DN15 | 1/2 | 45 | 13 | 63 | 53 |
| DN20 | 3/4 | 50 | 16 | 65.4 | 53 |
| DN25 | 1 | 60 | 18 | 71.7 | 57.5 |
| DN32 | 1-1/4 | 67 | 26 | 90 | 72 |
| DN40 | 1-1/2 | 75 | 29 | 100 | 78 |
| DN50 | 2 | 88 | 33 | 112.5 | 97 |
