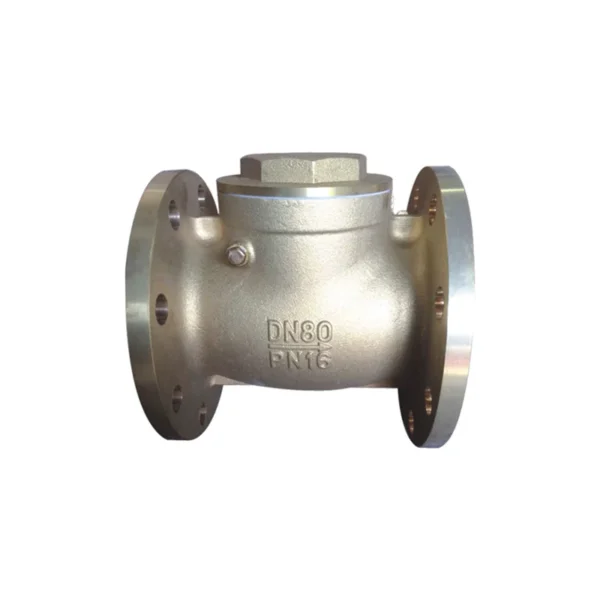

H44W-16T BrassSwing Check ValveIt is mainly used to protect the pipeline system from backflow and reverse flow and ensure the normal flow of fluid. It is suitable for use in piping systems of water, oil, gas and other media.
Product Details
H44W-16T BrassSwing Check ValveIt is mainly used to protect the pipeline system from backflow and reverse flow and ensure the normal flow of fluid. It is suitable for use in piping systems of water, oil, gas and other media. Its structure is reasonable, sealing performance is reliable, easy to use and maintain. At the same time, due to the brass material has good corrosion resistance and wear resistance, which makes the brass swing check valve can maintain stable performance in harsh environments. They are widely used in central air-conditioning system, HVAC system, water supply and drainage, municipal, high-rise building, chemical, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection and other fields.
Product Features
Used in water supply and drainage, fire fighting, HVAC, industrial and other systems.
It can effectively reduce water hammer pressure, has good sealing performance, and closes without noise.
The fluid-type water circuit with internal fluid conductors is designed to ensure minimal pressure loss.
Installed at the outlet of the pump can be quickly closed before the water flow backflow to avoid water hammer, water percussion sound and broken ping impact to prevent backflow and protect the equipment.
Product Parameters
| Product Model | H44W-16T |
| Valve body material | brass |
| Nominal pressure | ≤1.6Mpa |
| Applicable medium | Water, gas, oil, etc. |
| Applicable temperature | ≤120°C |

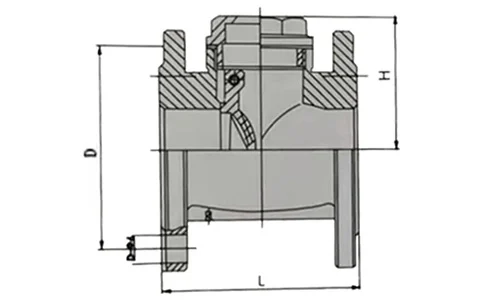

| a thoroughfare | L | D | H | n-φd |
| DN40 | 132 | 110 | 75 | 4-18 |
| DN50 | 144 | 125 | 80 | 4-18 |
| DN65 | 161 | 145 | 90 | 4-18 |
| DN80 | 184 | 160 | 105 | 8-18 |
| DN100 | 210 | 180 | 115 | 8-18 |
| DN125 | 237 | 210 | 130 | 8-18 |
| DN150 | 263 | 240 | 160 | 8-23 |
