Product Overview

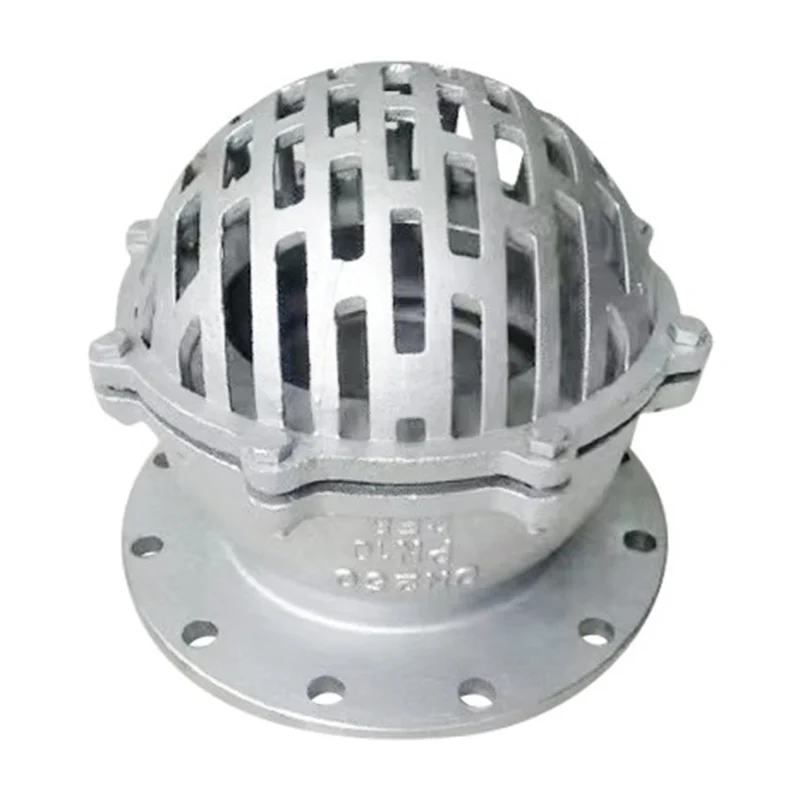

It is an energy-saving valve, typically installed at the bottom end of the underwater suction pipe of a water pump. It prevents the liquid in the pump pipe from flowing back to the water source, functioning to allow only inflow but no outflow. The valve cover is equipped with numerous water inlets and reinforcing ribs, which help prevent clogging.

Main Features

Energy-saving, prevents liquid backflow in pump pipes (one-way “in-only” function), and has anti-clogging valve cover with multiple water inlets and reinforcing ribs.

Working Principle

When the water pump starts, the liquid is sucked into the pump pipe through the water inlets on the valve cover, pushing the valve open to allow flow. When the pump stops, the liquid in the pipe exerts reverse pressure to close the valve, preventing backflow to the water source and maintaining the liquid in the pipe.

Structural Features

• Constructed from stainless steel for durability.
• Features a valve cover with multiple water inlets (ensuring smooth inflow) and reinforcing ribs (enhancing structural strength).
• Integrates a one-way valve core to control liquid direction, enabling “inflow-only” and preventing backflow.
• Designed for installation at the bottom of the pump’s underwater suction pipe, with a structure adapting to underwater working conditions.

Maintenance

• Check hydraulic oil level annually
• Test closing time every 6 months
• Inspect disc and seat for wear during system shutdowns
• Lubricate adjustment mechanism yearly
• Verify proper operation after system pressure changes
