Product Overview

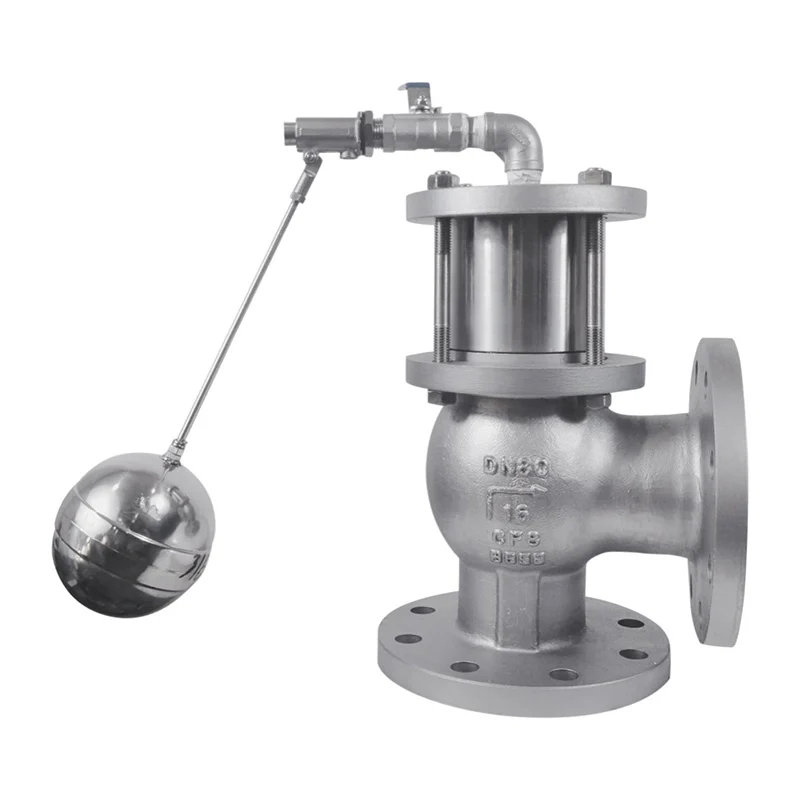

This valve is a hydraulic control valve that automatically regulates the liquid level in water tanks and water towers. When the water level drops below a preset value, the float valve opens, reducing the pressure in the upper chamber of the piston. A pressure difference is formed between the upper and lower parts of the piston, and under the action of this pressure difference, the valve disc opens to start water supply operation.

Main Features

• Automatic liquid level control for water tanks/towers.
• Hydraulic-driven operation, reliable performance.
• Floating ball mechanism triggers valve opening/closing.
• Simple structure, easy installation and maintenance.
• Suitable for automatic water supply systems.

Working Principle

1. When the water level drops below the preset value, the float valve opens.

2. This reduces the pressure in the upper chamber of the piston, creating a pressure difference between the upper and lower parts of the piston.

3. Driven by this pressure difference, the valve disc opens to supply water.

4. When the water level rises to the preset value, the float valve closes, restoring the pressure in the upper chamber of the piston.

5. The valve disc then closes to stop water supply.

Structural Features

• Consists of core components like float valve, piston, and valve disc.
• Equipped with an upper chamber for pressure adjustment on the piston.
• Adopts a hydraulic transmission structure for valve opening/closing.
• Compact overall design, suitable for integration into water supply systems.
• Features wear-resistant parts to ensure long-term stable operation.

Maintenance

• Check hydraulic oil level annually
• Test closing time every 6 months
• Inspect disc and seat for wear during system shutdowns
• Lubricate adjustment mechanism yearly
• Verify proper operation after system pressure changes
