Product Overview

It is an indispensable device in the pipeline system for conveying media. Usually installed at the inlet end of pressure reducing valves, pressure relief valves, constant water level valves or other equipment, it is used to filter impurities in the media so as to protect the normal operation of valves and equipment.

Main Features

• Material: Made of stainless steel, ensuring good corrosion resistance.
• Function: Effectively filters impurities in the conveying medium to protect downstream valves and equipment.
• Installation: Convenient to install, typically mounted at the inlet end of related pipeline equipment.
• Performance: Stable working performance, suitable for various industrial pipeline systems.

Working Principle

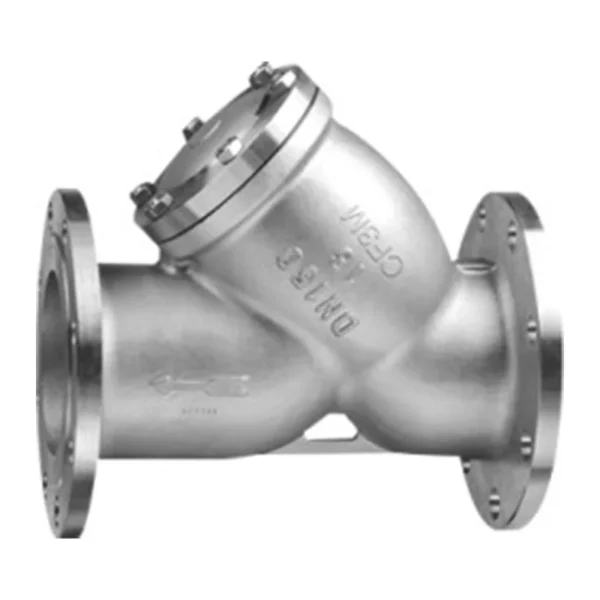

1. When the medium flows through the Y-type stainless steel filter (Model GL41W), it enters the filter chamber first.

2. The built-in filter element (or filter screen) inside the chamber traps and blocks impurities in the medium.

3. The filtered clean medium passes through the filter element and continues to flow downstream to the connected valves and equipment.

4. Periodically, the filter can be disassembled to clean or replace the filter element, ensuring its continuous and effective filtering performance.

Structural Features

• Adopts a Y-type design, which helps to maximize the filtering area and facilitate the collection of impurities.
• Main body is made of stainless steel, featuring high strength and corrosion resistance.
• Equipped with a removable filter element (or filter screen) for easy cleaning and replacement.
• Has standard inlet and outlet ports, compatible with common industrial pipeline connections.
• Compact overall structure, occupying small space and convenient for installation in limited pipeline layouts.

Maintenance

• Check hydraulic oil level annually
• Test closing time every 6 months
• Inspect disc and seat for wear during system shutdowns
• Lubricate adjustment mechanism yearly
• Verify proper operation after system pressure changes
