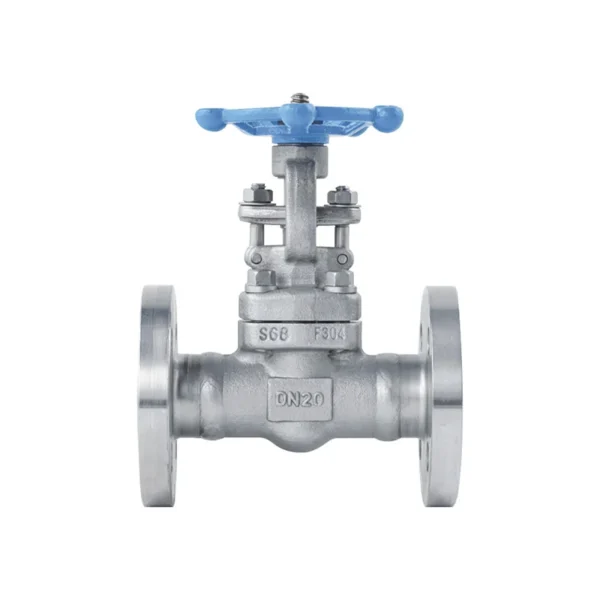

The forged steel gate valve features an outside screw and yoke (OS&Y), and rising stem. Bolted or welded bonnet joint. Solid wedge gate, integral backseat. full or standard port.

Performance and characteristics:

The forged steel gate valve features an outside screw and yoke (OS&Y), and rising stem. Bolted or welded bonnet joint. Solid wedge gate, integral backseat. full or standard port.

BODY – The body is forged steel and designed to the basic dimensional requirements of the applicable specifications such as API 602 and ASME B16.34. The body is available in both the full or standard port design.

BONNET – The bonnet is forged steel, has an integral backseat, and incorporates the stuffing box.

BONNET JOINT – bolted bonnet or pressure seal and seal welded type.

SEAT RING – The seat rings are pressed into the valve body and wedged into place, forming a seal with the body. The seating surfaces are ground and lapped.

WEDGE – The wedge is a solid wedge design, forged, and the surfaces are ground and lapped.

STEM – The stem is forged steel and it contains an integral back seat shoulder, which mates with the integral back seat of the bonnet. The stem is made to meet the basic size requirements of the relevant standards, like API 602.

Size:1/4″ – 2″

Pressure Rating：Class 150 – 2500

End Connections：Flanged, Welded (socket/butt weld), Threaded

Body Material：A105, A105N, LF2, F304, F316, F51, F60, F11, etc.

Standard Specifications

Design	API 602/ASME B16.34/BS 5352	Test	API 598
Socket Weld	ASME B16.11	Screw End	ASME B1.20.1
Butt Weld Ends	ASME B16.25	End Flanges	ASME B16.5

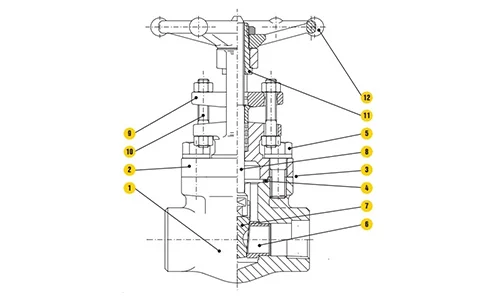

Materil Specifications

No.	Name	Material
1	Body	ASTM A105N
2	Bonnet	ASTM A105N
4	Gasket	304+Graphite
5	Bolting	B7/2H
6	Seat Ring	420+STL
7	Wedge	A276 410
8	Stem	A182 F6a
9	Gland	ASTM A105N
10	Bolting	A276 410
11	Yok Sleeve	A276 420
12	Handwheel	Carbon Steel

Forged Steel Gate Valve, Class 800, Full Port

Size	1/4″	3/8″	1/2″	3/4″	1″	1-1/4″	1-1/2″	2″
A	80	80	90	110	127	127	134	152
B	152	152	158	196	225	255	290	358
C	88	88	88	97	138	138	138	172
F	8	9.6	14	18	24	30	36.5	46.5
G	32	32	38	48	56	64	78	85
Weight	2.1	2.1	2.3	3.7	5.9	7.4	8.3	12.5

Forged Steel Gate Valve, Class 800, Reduced Port

Size	1/2″	3/4″	1″	1-1/2″	2″	3″
A	80	90	110	127	134	225
B	152	158	196	255	290	313
C	88	88	97	138	138	172
F	9.6	14	18	30	36.5	50
G	32	38	48	64	78	118
Weight	1.9	2.3	3.6	7.3	7.6	17.2

Forged Steel Gate Valve, Class 1500, Full Port

Size	1/4″	3/8″	1/2″	3/4″	1″	1-1/4″	1-1/2″	2″
A	90	90	110	127	127	127	127	210
B	153	153	190	220	250	282	290	345
C	88	88	97	138	138	138	138	172
F	8	9.6	14	18	24	30	36.5	48
G	38	38	48	56	64	78	78	85
Weight	2.4	2.4	4.1	6.2	8	10.5	11	20

Forged Steel Gate Valve, Class 1500, Reduced Port

Size	1/2″	3/4″	1″	1-1/2″	2″
A	90	110	127	127	210
B	152	190	220	282	345
C	88	97	138	138	138
F	9.6	14	18	30	36.5
G	38	48	56	78	85
Weight	2.4	3.9	6.1	10.8	20.5

GASKET. The bolted bonnet joint design valve uses a contained, controlled compression, spiral wound type gasket.
GLAND AND FLANGE. The gland, gland flange assembly utilizes a separate, two piece design. This self aligning design allows the flange to be unevenly tightened while the gland maintains it’s parallel alignment with the stem and stuffing box.
GLAND BOLTS AND NUTS. The steel/stainless steel gland bolt and nut assembly is a stud, double nut arrangement. This design allows complete removal from the valve when service is required. The use of industry standard thread full length studs and nuts also allows easy replacement should these items be lost or in need of replacement.
YOKE SLEEVE. The yoke sleeve is of forged stainless steel material having a high melting point and is resistant to wear and corrosion.
The handwheel is forged carbon steel of an open spoke design. This robust construction along with appropriate sizing allows for ease of operation.
