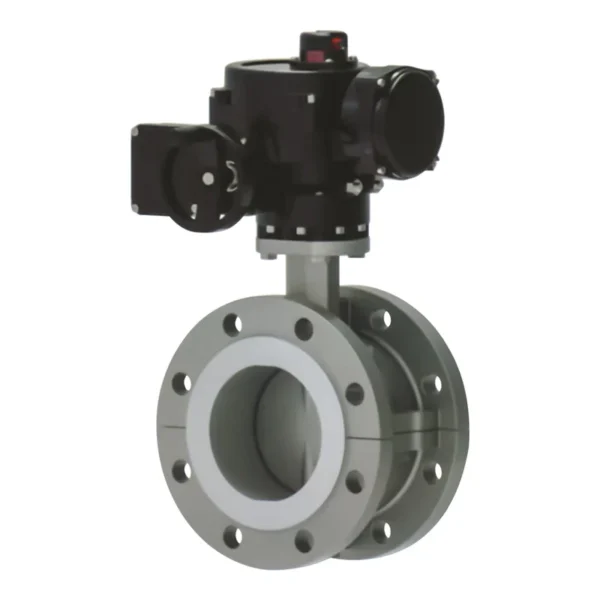

The Electric Soft Seal Flange Butterfly Valve is a high-performance flow control device designed for precise regulation of liquids, gases, and semi-solids in various industrial applications.
Product Description
The Electric Soft Seal Flange Butterfly Valve is a high-performance flow control device designed for precise regulation of liquids, gases, and semi-solids in various industrial applications. Featuring an electric actuator for automated operation and a soft seal for tight shut-off, this valve offers excellent performance with minimal maintenance requirements.
Key Features
Technical Specifications
| Valve Size | DN50 to DN1200 (2″ to 48″) |
| Pressure Rating | PN10/PN16 (150#/300# optional) |
| Temperature Range | -20°C to +180°C (-4°F to 356°F) |
| Seat Material | EPDM, NBR, Viton, PTFE (optional) |
| Disc Material | Stainless Steel 304/316, Ductile Iron with epoxy coating |
| Actuator Type | Electric (On/Off or Modulating control) |
| Voltage Options | 24V DC, 110V AC, 220V AC, 380V AC |
| Control Signal | 4-20mA, 0-10V, Profibus, Hart (optional) |
| Flow Characteristics | Equal percentage, Linear, Quick opening |
| Connection Type | Flanged (ANSI, DIN, JIS, BS standards) |
Typical Applications
