Product Overview

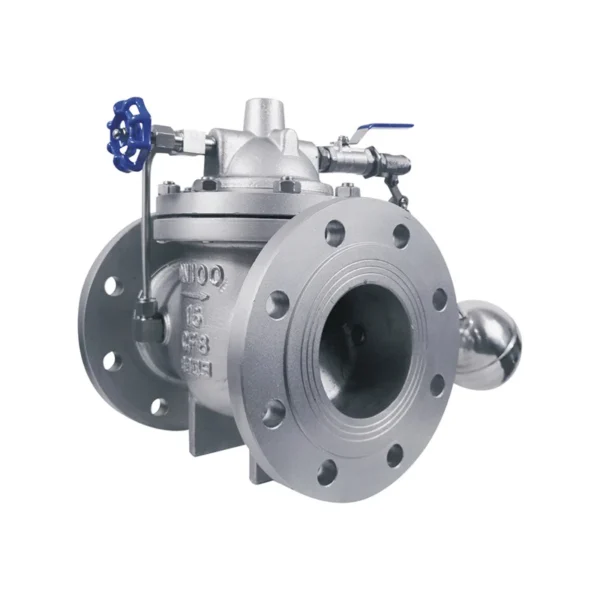

The 100X Remote Control Float Valve is a hydraulically operated valve designed for precise liquid level control in tanks and reservoirs. Its remote float design allows flexible installation while maintaining reliable operation, making it ideal for water supply systems, storage tanks, and industrial applications.

Key Features

• Remote Float Operation– Flexible installation with float positioned away from valve
• Precise Level Control– Maintains water level within ±10mm
• Corrosion Resistant– Stainless steel components and epoxy coated body
• Low Maintenance– Simple design with minimal moving parts
• Adjustable Shut-off– Customizable closing speed to prevent water hammer
• Universal Installation– Suitable for horizontal or vertical mounting
• High Flow Capacity– Full port design minimizes pressure drop

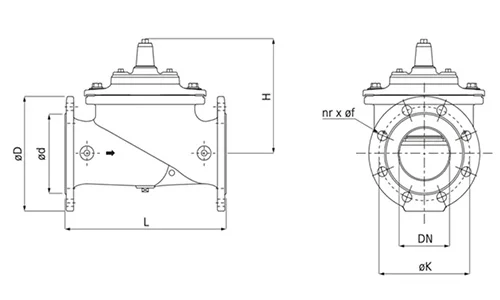

Technical Specifications

Working Principle

The 100X valve operates through a hydraulic pilot system connected to a remote float. When the liquid level drops, the float descends, opening the pilot valve which releases pressure from the diaphragm chamber, allowing the main valve to open. As the liquid level rises, the float lifts, closing the pilot valve and building pressure in the diaphragm chamber to gradually close the main valve.

Structural Features

• Diaphragm Actuator– Provides reliable operation with low maintenance
• Adjustable Float Arm– Precise level setting capability
• Stainless Steel Linkage– Corrosion-resistant mechanical components
• Flow Control – Adjustable needle valve for customized closing speed
• Bypass Valve – Manual override capability

Applications

• Water storage tanks and reservoirs
• Cooling towers and condensate systems
• Industrial process tanks
• Fire protection water storage
• Agricultural irrigation systems
• Sewage and wastewater treatment

Installation & Maintenance

Installation Requirements

• Install in accessible location for maintenance
• Ensure proper support for float cable
• Maintain minimum 5×DN straight pipe upstream
• Protect float from turbulence or obstruction
• For vertical installation, orient valve according to markings

Maintenance

• Inspect float mechanism quarterly
• Check diaphragm annually for wear
• Lubricate moving parts as needed
• Test manual override function periodically
• Clean strainer (if equipped) every 6 months
